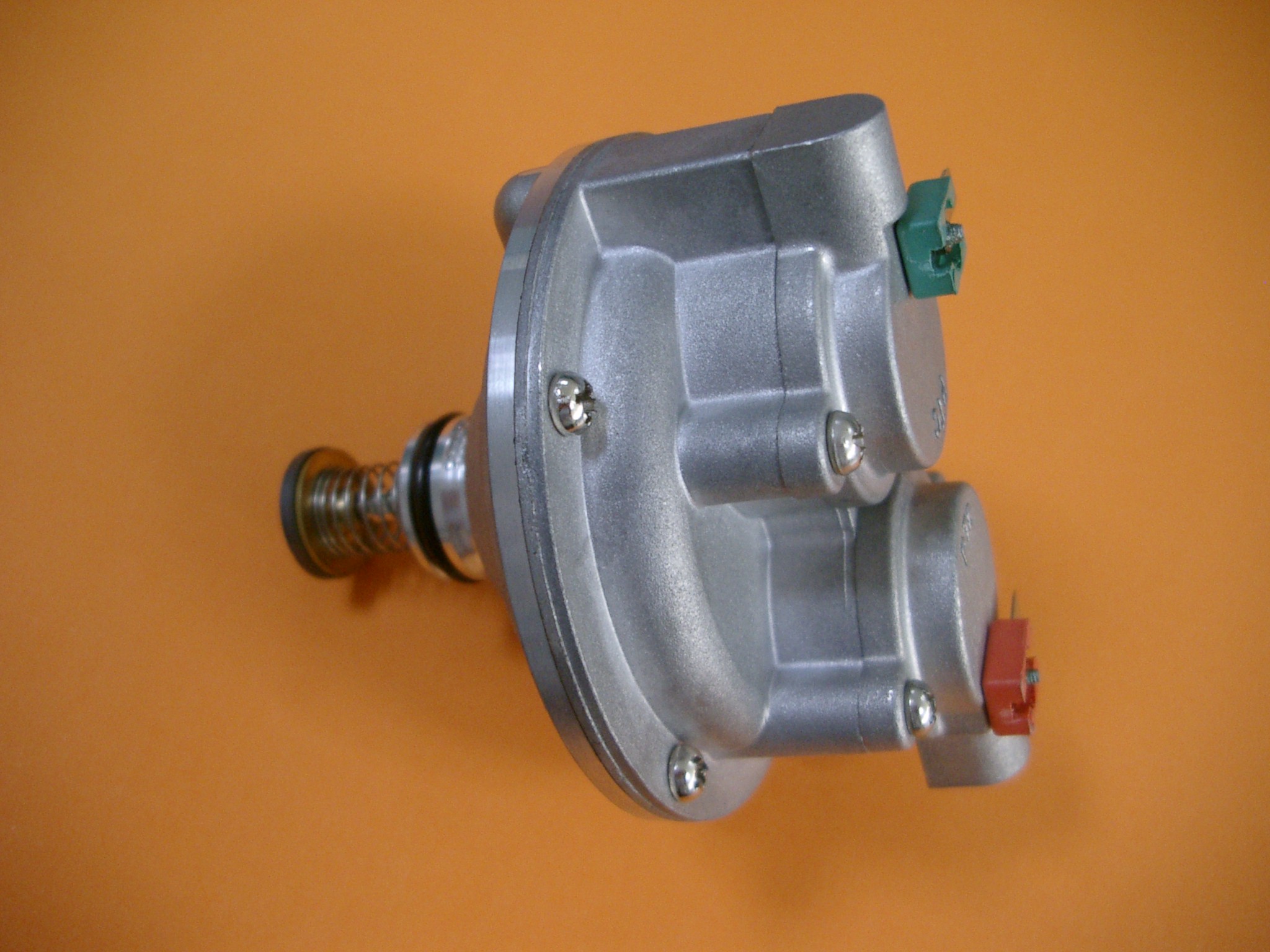

THE DOUBLE SOLENOID DIAPHRAGM VALVE

     Gas Type : LPG 、 NG

     Rated Voltage : DC1.5V (UM-1)

     Valve diameter: Φ 10

     Valve Journey : ＞ 3mm

     Valve Depth: Valve free length: 33± 1.0mm , Suggested Valve Depth 30mm

     Valve Obstruction force: When valve draw back to 30mm ,the valve obstruction force is 130g ±15%

     Gas working pressure : 80 mmH 2 O ~ 3 7 0 mmH 2 O

     Working temperature : -5 ℃ ~ 85 ℃ ( except for icing )

     Material : ADC-12 aluminum metal with transacted involucra

     Connect terminal : Pilot valve :4.8*0.5 Main valve :4.8*0.5( green )

     Valve connecting diameter : 22φ( main valve ) M8*P1.0 ( pilot valve )

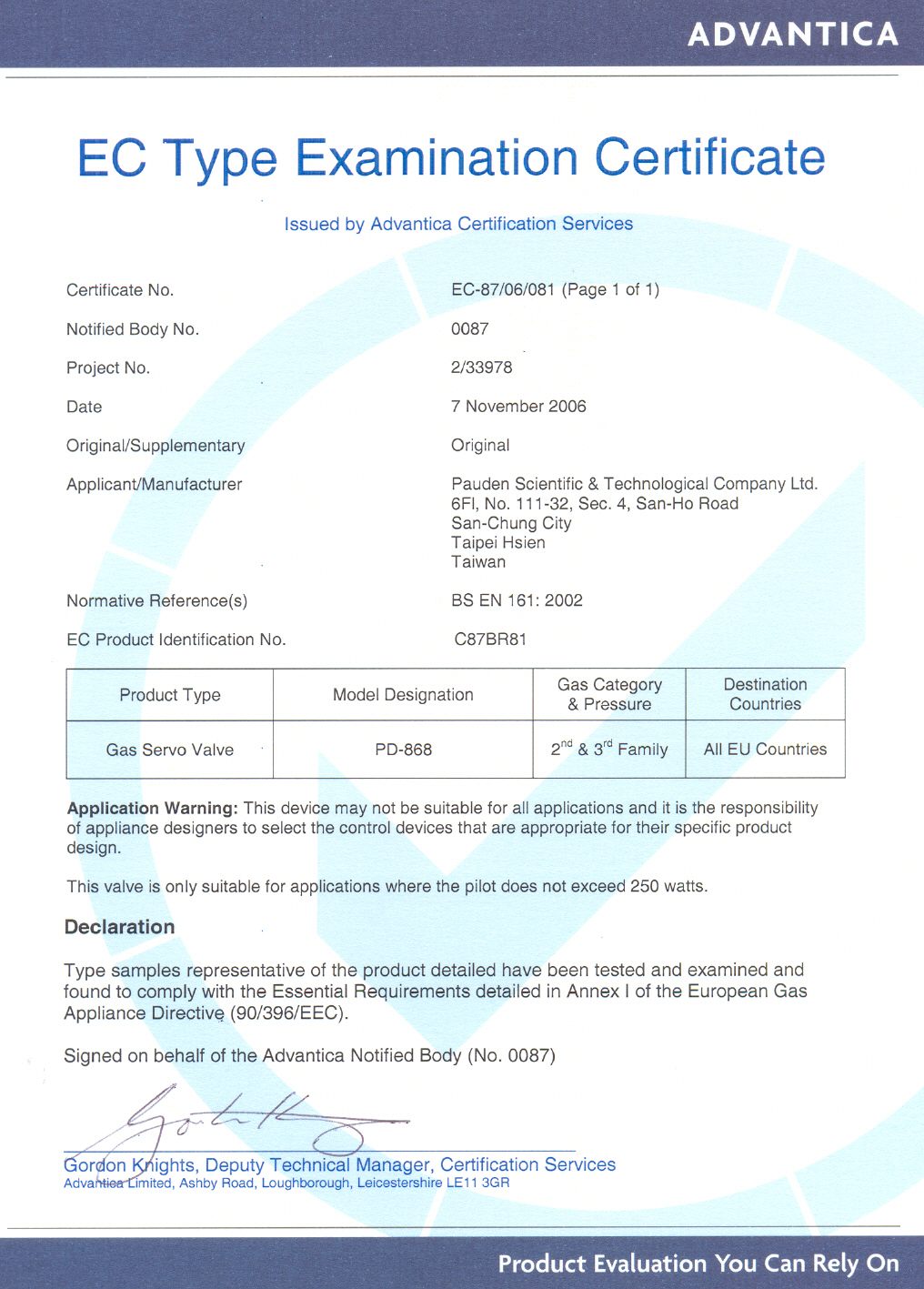

w PATENTED PRODUCTS. ANY INFRINGEMENT WILL BE PROSECUTED w
