    AUTOMATIC IGNITION CONTROL SYSTEM

    P-700/P-700B


    THE DETECT DEVICE WILL CHECK THE SYSTEM AFTER TURN ON THE POWER AND IF THE INTERNAL SYSTEM COMPLETE NORMALLY, IT WILL OPEN THE VALVE AND IGNITE THE PILOT BURNER.

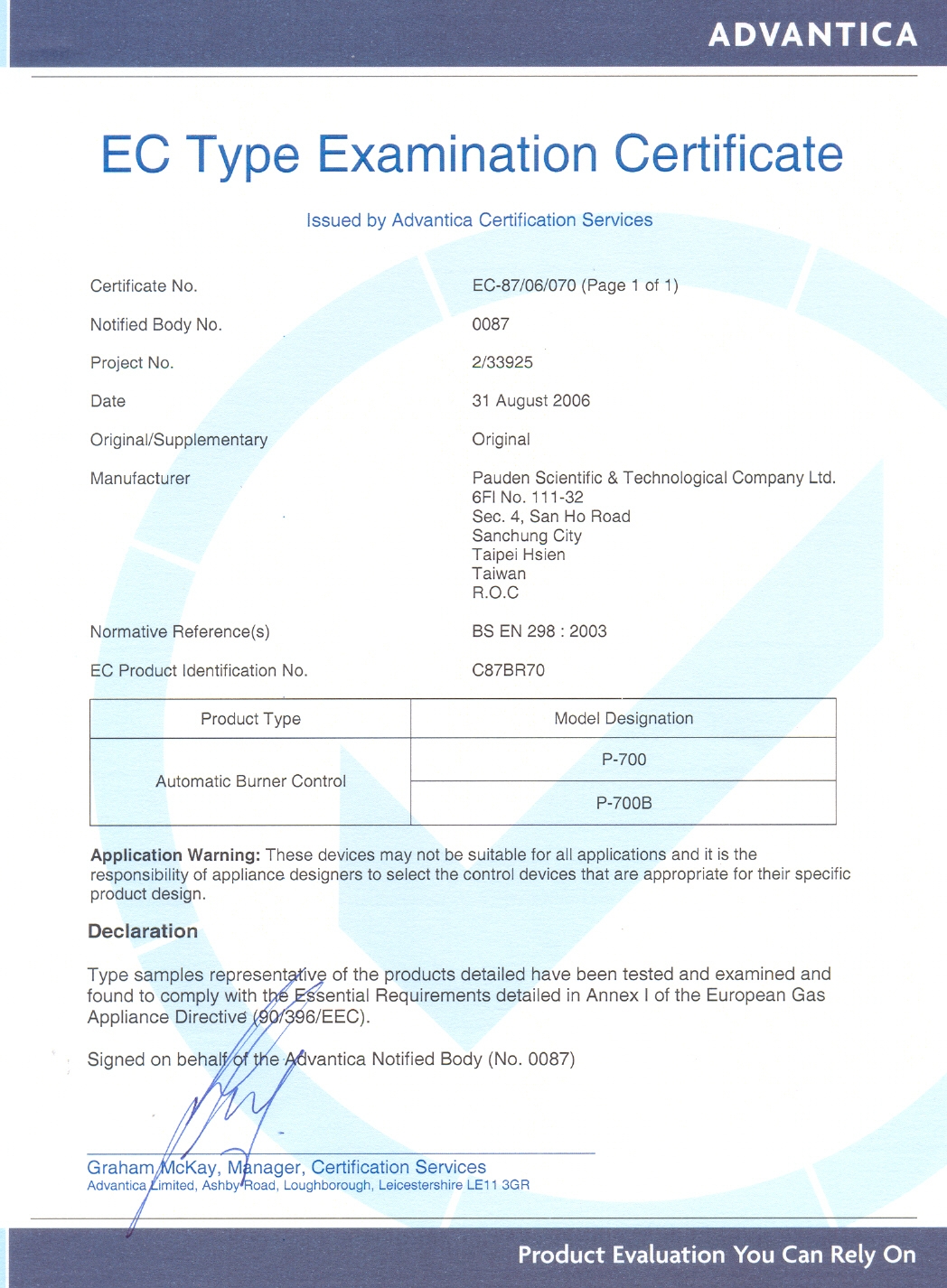

    CORRESPOND WITH THE REQUIREMENTS OF BS EN298:2003. CERFICATE NO. EC-87/06/070

    2-FAULT SAFETY INSPECTION DEVICE

    TIME-SETTED PROTECTIVE DEVICE STOPS GAS SUPPLY WHEN HAPPENING OF ABNORMAL FIRE EXTINCTION

    FLAME SENSOR FOR AUTO-RESTART GAS STOPS AUTOMATICALLY WHEN POWER RUNS OUT. ( P-700B won't be re-ignited again in the case of distinguished during mid-term after 90 seconds of ignition ).

    SPECIAL FLAME SENSOR AND OXYGEN DEPLETION INDICATOR FREE FROM HEAVY UMIDITY,MOISTURE,DUST & OIL.

    MODEL
    VOLTAGE
    POWER

    SPARK
    DISTANCE

    DISCHARGING
    FREQUENCE
    L
    W
    H
    CENTER TO CENTER LENGTH
    TIMER
    OXYGEN DEPLETION DEVICE
    P-700/700B
    1.065-1.7VDC
    UM-1
    >6mm
    min 4HZ/SEC(1.5V)
    58
    70
    33
    68
    40±10 SEC
    P-700B




    w PATENTED PRODUCTS. ANY INFRINGEMENT WILL BE PROSECUTED w
